D R A G   B A R S

50-512 Y-Bar, one bend, (10" rise shown)

50-515 Y-Bar, two bend style, (10" rise shown)

These custom drag bars are 1 1/4” Dia. and have either 1 or 2 bend risers, chrome finish.  All bars are on 3.5” centers and come drilled for internal wiring.

ONE BEND STYLE - 32” WIDE
50-110 Y-Bar, 1 bend, 6.0” rise.  Chrome.
50-111 Y-Bar, 1 bend, 8.0” rise.  Chrome.

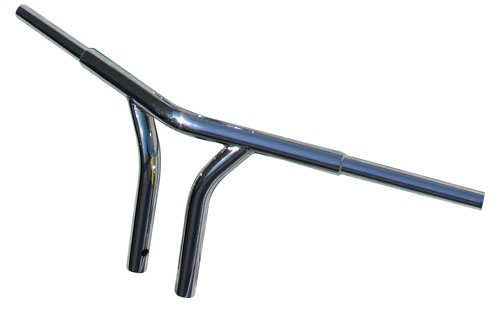

50-112 Y-Bar, 1 bend, 10.0” rise.  Chrome.

TWO BEND STYLE - 31” WIDE
50-113 Y-Bar, 2 bend, 6.0” rise.  Chrome.
50-114 Y-Bar, 2 bend, 8.0” rise.  Chrome.

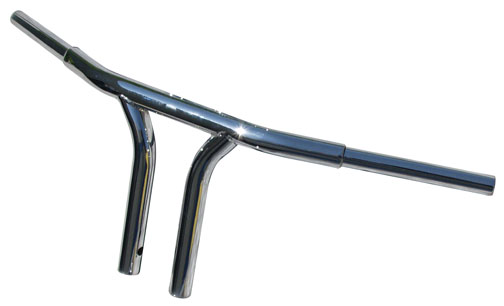

50-115 Y-Bar, 2 bend, 10.0” rise.  Chrome.


1-1/4" Drag Bars

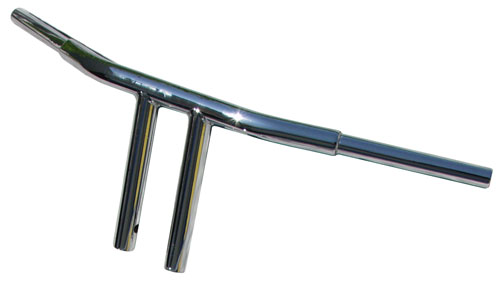

50-274 1-1/4" Drag Bar, Straight Risers


50-8 1-1/4" Drag Bar, Pull Back Risers

These custom drag bars are 1 1/4” Dia. and have either straight or pull back risers, in chrome or raw finish.  All bars are on 3.5” centers, are 31” wide and come drilled for internal wiring.

50-1 Pull back  risers, 6.0” height, Chrome
50-270 Pull back risers, 6.0” height, Raw
50-8 Pull back risers, 8.0” height, Chrome
50-271 Pull back risers, 8.0” height, Raw
50-230 Straight risers, 4.0” height, Raw
50-272 Straight risers, 4.0” height, Chrome
50-229 Straight risers, 6.0” height, Raw
50-273 Straight risers, 6.0” height, Chrome
50-228 Straight risers, 8.0” height,  Raw
50-274 Straight risers, 8.0” height, Chrome
50-231 Straight risers, 10.0” height, Raw
50-275 Straight risers, 10.0” height, Chrome


H A N D L E B A R S

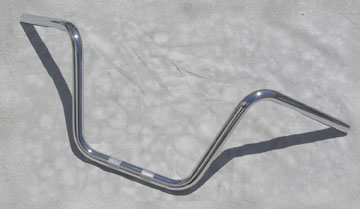

50-221 Mini "Ape Hanger." Fits FXDWG 1993 thru 1997.
Replaces OEM 56079-93

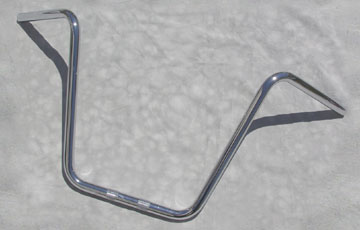

50-222
16" Ape hanger. Knurled, without  dimples.



50-223  Drag bar. Without knurles & dimples

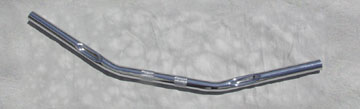

50-224 Standard drag bar for 1982 & later. Knurled & dimpled.

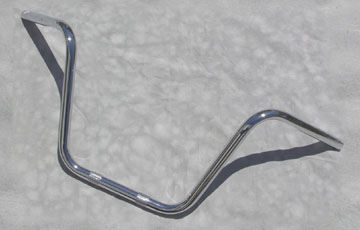

50-246 12" Ape hanger (Springer® fork). 4-3/4² center to center
kurled and dimpled.

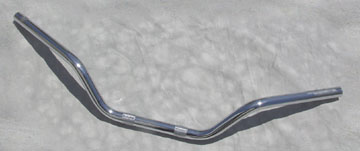

50-249 Fits Bad Boy® (Springer® fork).4-3/4" center to center
kurled and dimpled.



50-250 Fits FLST 1987 thru 1997. Replaces OEM 56569-86

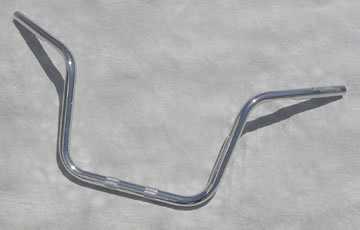

50-251 Heritage® style for Road King®.
Knurled & dimpled.



50-251 Glide® style bar for H-D®. Knurled & dimpled.


PART #

APPLICATION

WIDTH

HEIGHT

CENTER WIDTH

PULL
BACK

50-250

Fits FLST 1987 thru 1997. Replaces OEM 56569-86

31.32"

11.41"

7.46"

5.22"

50-221

Mini "Ape Hanger." Fits FXDWG 1993 thru 1997.
Replaces OEM
56079-93

32.77"

9.13"

6.35"

7.19"

50-248

Fits FLST/N 1990 thru 1997, FLH 1982 thru 1984,andFLHR 1994 thru 1997. Replaces OEM 55919-82

32.57"

4.27"

12.09"

9.01"

50-249

Fits Bad Boy® (Springer® fork).4-3/4" center to center kurled and dimpled.

31.17"

6.01"

6.90"

4.20"

50-251

Heritage® style for Road King®. Knurled & dimpled.

31.55"

13.13"

8.06"

5.34"

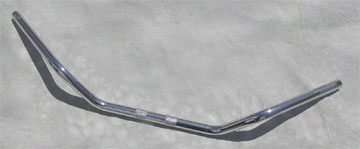

50-252

Glide® style bar for H-D®. Knurled & dimpled.

35.93"

3.41"

10.35"

6.81"

50-225

12" Ape Hanger. Knurled, without dimples.

33.45"

10.22"

7.85"

6.91

50-226

12" Ape hanger. Knurled & dimpled.

33.45"

10.22"

7.85"

6.91"

50-246

12" Ape hanger (Springer® fork). 4-3/4" center to center kurled and dimpled.

33.45"

10.22"

7.85"

6.91"

50-220

6" Ape hanger. Knurled & dimpled.

33.45"

13.65"

8.04"

7.5"

50-222

16" Ape hanger. Knurled, without  dimples.

33.45"

13.65"

8.04"

7.5"

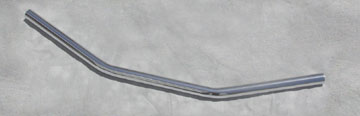

50-223

Drag bar. Without knurles & dimples

26.0"

-----

9.0"

5.0"

50-224

Standard drag bar for 1982 & later. Knurled & dimpled.

26.0"

-----

9.0"

5.0"

50-247

Fat Boy® style. Fits
H-D® 1973 thru 1981.

32.57"

4.27"

12.0"

8.0"

50-202

Medium Buckhorn. Knurled & dimpled.

28.75"

6.0"

9.75"

10.5"

50-203

High Buckhorn. Knurled & dimpled.

34.0"

11.5"

10.25"

8.25"

50-204

 Pre-77.

35.5"

4.5"

10.5"

7.75"
