Ultima®
Chrome Die Cast Cam Cover
Economy backed by Racing Technology

. . . . . . .  ®  . . . . . . .

The Ultima® chrome die cast cam cover is an excellent way
to dress up your Evolution® style Engine. This cover fits
1984 thru 1990 models as well as most aftermarket engines using tapered style pinion gear. Die cast structure with a patented breather vent passageway offers affordable performance with superior oil-from-air separation. Cover will accept all popular ignition systems. Includes bushings. Point cover not included.

88-110 Ultima® Die Cast Cam Cover.


Ultima®
Cam Shafts
Economy backed by Racing Technology

These are the grinds we use in all Ultima® Engines to produce unmatched performance specifications. These grinds fit all Evolution® Engines.

114-68 Ultima® Cam MW250 used in Ultima® 96 C.I.
applications.
114-246 Ultima® Cam MW248 used in Ultima® 100 C.I. applications.

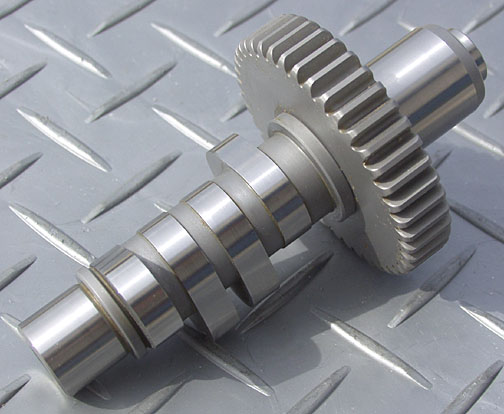

114-245 Ultima® Cam MW264 used in Ultima® 113, 127, & 140 C.I. applications.

All timing information @ .053 tappet lift using 1.625 rocker ratio

# 114-68

# 114-246

# 114-245

GRIND
MW520

GRIND
MW248

GRIND
MW264
INTAKE
OPEN / CLOSE
28 / 54		 INTAKE
OPEN / CLOSE
18 / 50		 INTAKE
OPEN / CLOSE
24 / 60
EXHAUST
OPEN / CLOSE
69 / 23		 EXHAUST
OPEN / CLOSE
54 / 18		 EXHAUST
OPEN / CLOSE
68 / 20
DURATION
INT. / EXH.
262 / 272		 DURATION
INT. / EXH.
248 / 252		 DURATION
INT. / EXH.
264 / 268
LOBE CENTER
INT. / EXH.
103 / 113		 LOBE CENTER
INT. / EXH.
106 / 108		 LOBE CENTER
INT. / EXH.
108 / 114
VALVE LIFT@
.520 / .520		 VALVE LIFT@
.600 / .580		 VALVE LIFT@
.625 / .580
OVERLAP
51 Degrees		 OVERLAP
36 Degrees		 OVERLAP
44 Degrees
TDC LIFT
.209 / .194		 TDC LIFT
.181 / .121		 TDC LIFT
.218 / .200
LOBE SEP ANGLE
108		 LOBE SEP ANGLE
107		 LOBE SEP ANGLE
111
