ULTIMA® Spark Plug Wires
HOME

ENGINESDRIVETRAIN
SHOW BIKESFrames ChassisFRONT ENDSWHEELSGAS AIR OILEXHAUSTHAND FOOT CONTROLSIGNITIONELECTRICAL

















High performance 8mm wire-wound supression core producing 300 ohms of resistance per foot.
Up to 15 times more efficient than factory OEM wires to promote faster and more complete fuel burn in the cylinder head.
Resists temperatures up to 600°F.
Competition Sleeving (used by most Winston Cup teams), covers the entire length of wire, boot to boot, is silicone over fiberglass braid, provides 8000 volts of additional insulation to the wire and eliminates spark plug misfire and spark jump.
Dyno tested, resulting in 2 - 6 hp increase over factory OEM wires.
Highest quality silicone spark plug boots and coil boots.
Posi-snap lock stainless steel spring clip terminals.

Suppresses radio frequency interference that electronic ignition systems demand.
Double insulated at spark plug and coil ends.

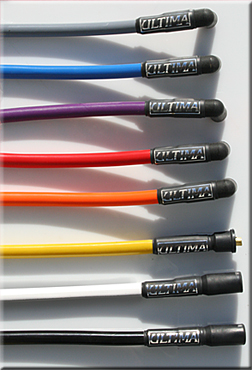

Available in 8 custom colors: Gray, Blue,Purple, Red, Orange, Yellow, White, and Black.
Available for H-D® and most aftermarket V-Twin applications (i.e. Fat Bastard®, Big Dog™, Bourget™, etc.)
Wire sets come complete and ready for
installation.*
Plug wires have chrome embossment of the Ultima® logo.

Spark Plug Wires

Hi Po Wires







APPLICATION
RED
BLUE
GRAY
BLACK
PURPLE
YELLOW
ORANGE
WHITE
Twin Cam Softail, FXD '99 - up, & FXDWG, side mount coil behind engine
18-427
18-428
18-429
18-430
18-431
18-432
18-433
18-578
Twin Cam FLT
18-434
18-435
18-436
18-437
18-438
18-439
18-440
18-579
Softail Evolution 1999 & earlier, Big Twin FX & FL 1965-1984, side mount coil behind engine. Also Sporster 1971 thru 1976 front mount coil.
18-441
18-442
18-443
18-444
18-445
18-446
18-447
18-580
Sportster Evolution 1985 & later (except XLS), and FLT 1985 thru 1998, coil mount up from under gas tank.
18-448
18-449
18-450
18-451
18-452
18-453
18-454
18-581
FXR models, custom bikes with coil mount between cyclinders on motor mount (i.e. Fat Bastard, Big Dog, Iron Horse, Bourget, etc.
18-455
18-456
18-457
18-458
18-459
18-460
18-461
18-582
Sportster Evolution 2004 & up
18-571
18-572
18-573
18-574
18-575
18-576
18-577
18-570
