Custom Round Oil Tanks
These custom steel oil tanks can be used on Softail® or rigid applications. They are 6-1/2” diameter and 11-3/4” long. Battery box is built in on all tanks except the universal applications. Available in center fill or side fill, chrome or raw metal. Tanks for wide Softails® have shorter “wings” for swing arm clearance. Use stock Softail® style rear mount. Front mount, filler cap and fittings are included (except Twin Cam® and universal applications).

3.5 quart oil tanks for 1984 thru 1999 softail® or rigid frames
6-1/2” Diameter, 11-3/4” long.

#26-204 Side fill, chrome plated.
#26-205 Side fill, raw metal.
#26-206 Center fill, chrome plated.
#26-207 Center fill, raw metal.
........................................................

3.5 quart oil tanks for Wide Softail® frames
6-1/2” Diameter, 11-3/4” long.

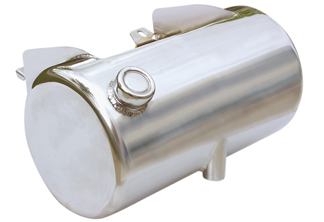

#26-200 Side fill, chrome plated. (shown below)
#26-201 Side fill, raw metal.
#26-202 Center fill, chrome plated.
#26-203 Center fill, raw metal.

...............................................................

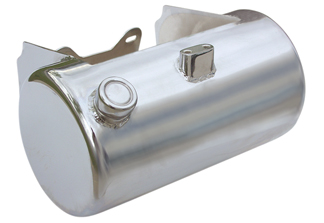

3.5 quart oil tanks for Twin CamSoftail®
6-1/2” Diameter, 11-3/4” long.


NOTE: Twin Cam tanks require removal
of coil bracket and relocation of coil. Also requires custom oil lines.
#26-210 Side fill, chrome plated.
#26-211 Side fill, raw metal.
............................................................
4 Quart Oil Tanks for Custom Universal Use

5-1/2” Diameter, 11-3/4” long. NO BATTERY TRAY. Sold each.
#26-208 Side fill, chrome plated.
#26-209 Side fill, raw metal.
