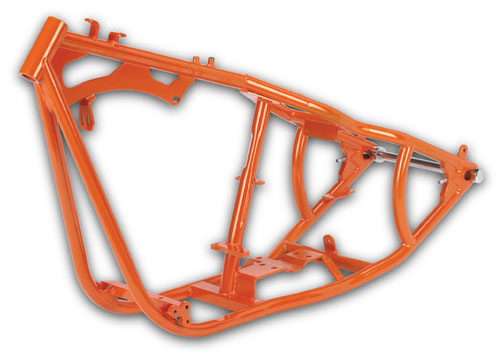

Material:
1020 DOM (Drawn Over Mandrel) steel tubing.
Downtube legs are 1-3/8” O.D. for double downtube frames.
Downtube is 1-3/4” O.D. for single downtube frames.
Cradle tubes are 1-3/8” O.D. for single downtube frames.
Backbone and seat post are 1-1/2” O.D.
Special features:
TIG Welded.
Accepts 11” fender.
Accepts Softail® style oil tank.
Accepts 250 rear tire with full width 1.5” belt.
Integral 5th bolt mounting within reinforced offset trans plate.
Included additionally:
1” Dia. rear axle kit (not shown).
Front oil tank mounts (not shown).
NOTE 1: Requires a 1-1/4” engine-to-inner primary spacer.
NOTE 2: Gas tank mounts, coil mounts & regulator mounts must be determined by builder.
NOTE 3: Backbone is measured from back of neck to front of seat plate gusset. Downtube is measured from bottom of neck to top of cradle tube joint.
