1" Handlebar Application Chart |
|||||
PART # |
APPLICATION |
WIDTH |
HEIGHT |
CENTER WIDTH |
PULL BACK |
50-250 |
Fits FLST 1987 thru 1997. Replaces OEM 56569-86 |
31.32" |
11.41" |
7.46" |
5.22" |
50-221 |
Mini "Ape Hanger." Fits FXDWG 1993 thru 1997.Replaces OEM 56079-93 |
32.77" |
9.13" |
6.35" |
7.19" |
50-248 |
Fits FLST/N 1990 thru 1997, FLH 1982 thru 1984,andFLHR 1994 thru 1997. Replaces OEM 55919-82 | 32.57" |
4.27" |
12.09" |
9.01" |
50-249 |
Fits Bad Boy® (Springer® fork).4-3/4" center to center kurled and dimpled. | 31.17" |
6.01" |
6.90" |
4.20" |
50-251 |
Heritage® style for Road King®. Knurled & dimpled. | 31.55" |
13.13" |
8.06" |
5.34" |
50-252 |
Glide® style bar for H-D®. Knurled & dimpled. | 35.93" |
3.41" |
10.35" |
6.81" |
50-225 |
12" Ape Hanger. Knurled, without dimples. | 33.45" |
10.22" |
7.85" |
6.91" |
50-226 |
12" Ape hanger. Knurled & dimpled. | 33.45" |
10.22" |
7.85" |
6.91" |
50-246 |
12" Ape hanger (Springer® fork). 4-3/4" center to center kurled and dimpled. | 33.45" |
10.22" |
7.85" |
6.91" |
50-220 |
6" Ape hanger. Knurled & dimpled. | 33.45" |
13.65" |
8.04" |
7.5" |
50-222 |
16" Ape hanger. Knurled, without dimples. | 33.45" |
13.65" |
8.04" |
7.5" |
50-223 |
Drag bar. Without knurles & dimples | 26.0" |
---- |
9.0" |
5.0" |
50-224 |
Standard drag bar for 1982 & later. Knurled & dimpled. | 26.0" |
---- |
9.0" |
5.0" |
50-247 |
Fat Boy® style. Fits H-D® 1973 thru 1981. | 32.57" |
4.27" |
12.0" |
8.0" |
50-202 |
Medium Buckhorn. Knurled & dimpled. | 28.75" |
6" |
9.75" |
10.5" |
50-203 |
High Buckhorn. Knurled & dimpled. | 314" |
11.5" |
10.25" |
8.25" |
50-204 |
Pre-77. | 35.5" |
4.5" |
10.5" |
7.85" |

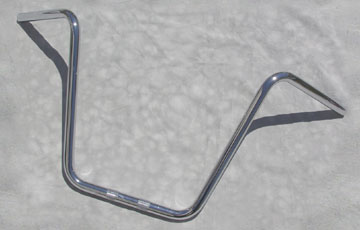

50-222 16" Ape hanger. Knurled, without dimples.

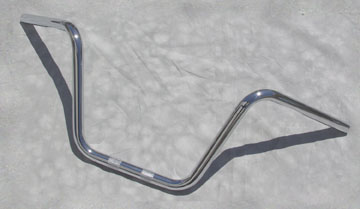

50-221 Mini "Ape Hanger." Fits FXDWG 1993 thru 1997.
Replaces OEM 56079-93

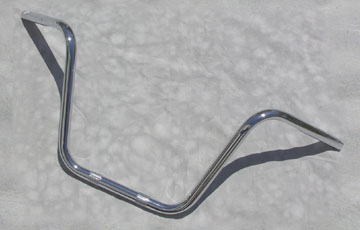

50-246 12" Ape hanger (Springer® fork). 4-3/4" center to center
kurled and dimpled.
50-249 Fits Bad Boy® (Springer® fork).4-3/4" center to center
kurled and dimpled.

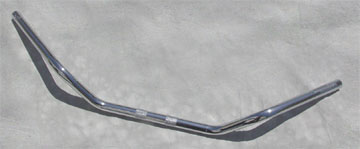

50-252 Glide style bar for H-D®. Knurled & dimpled.
50-223 Drag bar. Without knurles & dimples

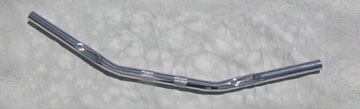

50-224 Standard drag bar for 1982 & later. Knurled & dimpled.
